Assembly
B. Y. O. W!
BOTTLE YOUR OWN WATER!
For HOME • OFFICE • CAMPING
YOUR COOL AIR WATER FILTER KIT
includes...
– 2 Five Gallon Containers and lids
.BPA Free, HDPE, Heavy Duty, 90 MIL.
Certified for up to 6,000 gallons of water.
Pre-drilled for easy assembly.
– 2 BB9-2 Black Activated Carbon Filters
certified for up to 6,000 gallons of water
Average replacement: 2-3 Years
– 2 PF-2 Fluoride Filters
certified to filter up to 1000 gallons of water
– 1 Water Spigot
with its insert sleeve already in place.
– 1 Water Funnel
to aid in easy water bottle filling.
– 1 Empty 50+ oz Empty Water Bottle
For your fridge...to Get you started on BYOW.
Produced for Gingartum by The Wiseman Company.
COOL AIR WATER KIT!
DOUBLE-FILTER KIT ASSEMBLY INSTRUCTIONS:

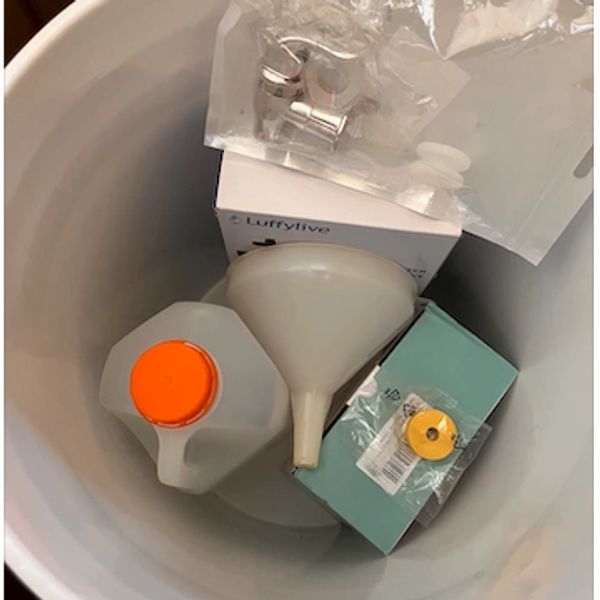

Open the top of the Cool Air Water Filter kit food-grade bucket and remove the items inside and the box of filters inside.
All four filters are commercially sealed, have passed strict NSF certification. The filters are and shipped in their original box with easy priming instructions.
Once the filters have been primed, actual assembly requires no tools and takes less than 5 minutes to complete.
Cool Air Water Kits can be easily disassembled to carry to a campsite or a new location.
PREP THE FILTERS

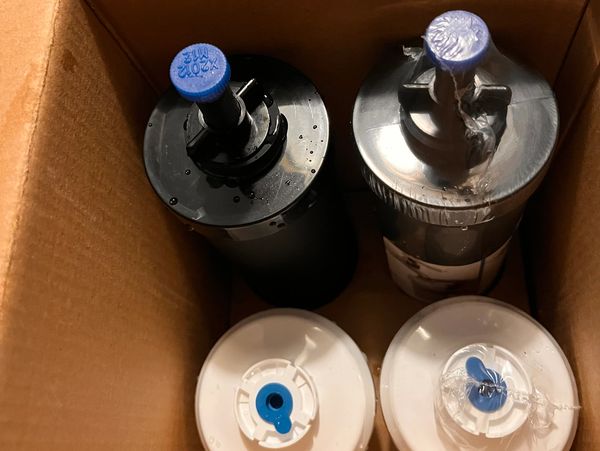

Pull out the 4 filters and remove the blue plugs on each of them.
PRIME THE WHITE FILTERS

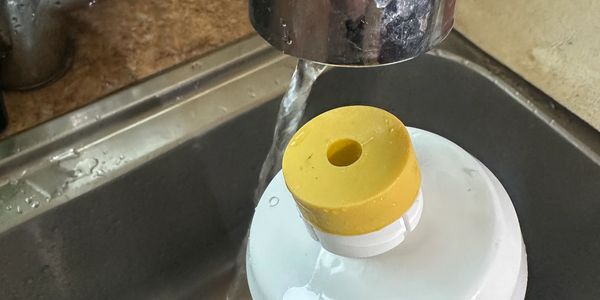

Affix the small rubber priming buffer to the top of the white filters. Put your faucet on a fast drip and hold the buffer against that, forcing water into each white filter.
First, you will see a cloud of dust come out followed by a stream of dark water as the insides becomes soaked. Once flushing is complete, submerge the filters in clean water for half an hour.
PRIME THE BLACK FILTERS

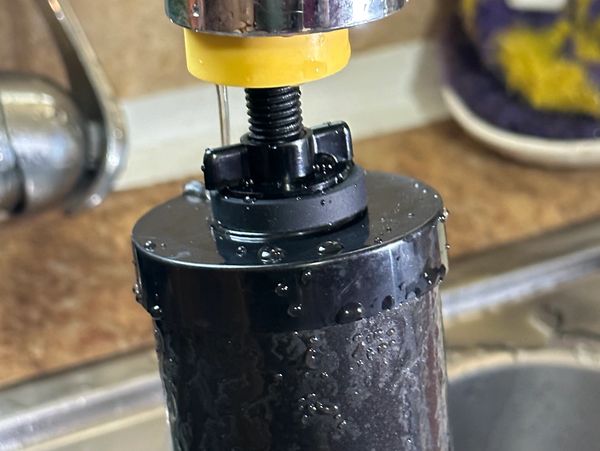

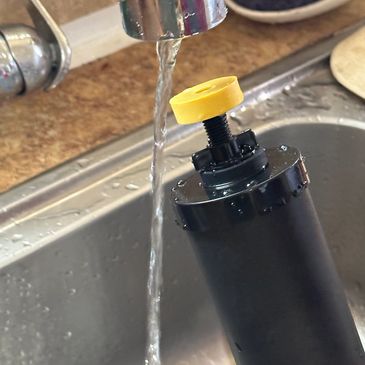

Affix the small rubber priming buffer to the top of each black filters.
Put your faucet on a fast drip and hold the buffer against that, forcing water into each filter until you see small water beads popping from the side of the black carbon filter.
Once this preparation is complete on both filters, submerge them with the white filters in clean water for half an hour.
PREP THE LOWER CHAMBER
While the filters are soaking, you can prep both chambers.

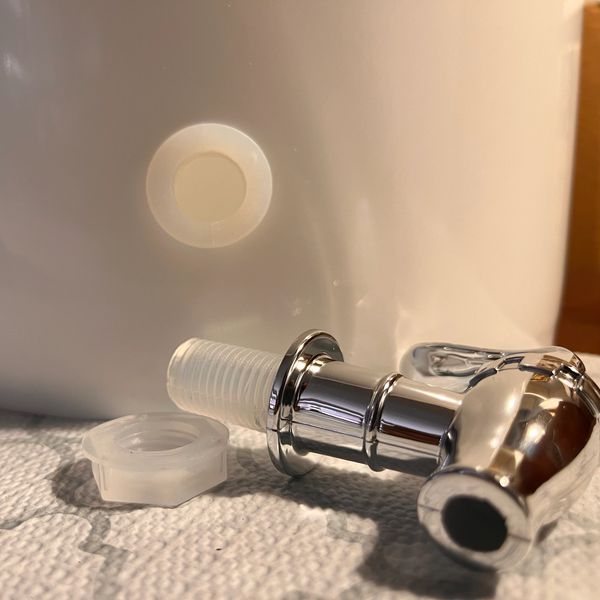

Chamber 2 has a hole in the lower side.
A plastic liner is already in place for easy spigot insertion.
Insert the spigot into its pre-drilled, plastic-lined hole in the bottom of Chamber 2. Use the plastic bolt provided to secure and tighten it from the inside. Test with a gallon of water to ensure that no moisture drops will leak from the bottom of the orifice.*
~ ~ ~
*If a tighter seal or more strength is needed, feel free to use a wrench to make your last turn as tight as can be. If you use a tool, please be careful not to strip the threads of the spigot.
PREP THE UPPER CHAMBER

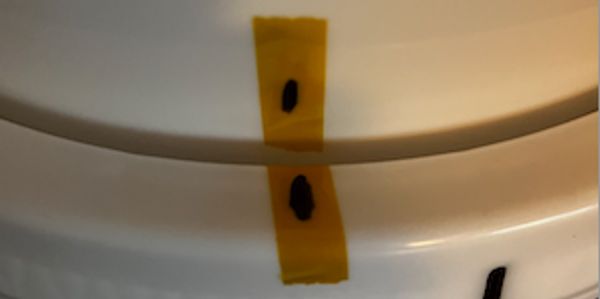

Aline upper Chamber 1 's bottom with the holes drilled into lower Chamber 2's top.

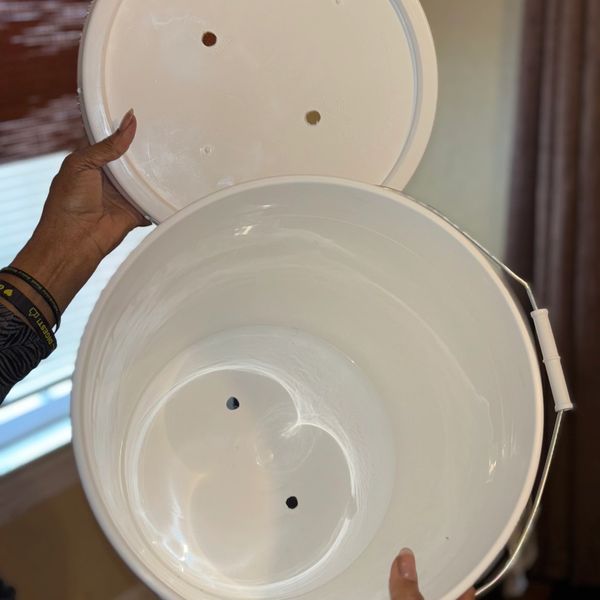

Chamber 1 has two pre-drilled holes in its bottom.
Chamber 2’s cover has 2 holes that match the holes in the bottom of Chamber 1.
PREP FOR FILTER ATTACHMENT
Once all 4 filters are primed, line the holes of upper Chamber 1 with the pre-drilled holes in the cover for Chamber 2.
Make sure that the cover is facing down not up. This will ensure that it fits correctly on top of Chamber 2.
INSERT THE BLACK FILTERS
ONE AT A TIME...

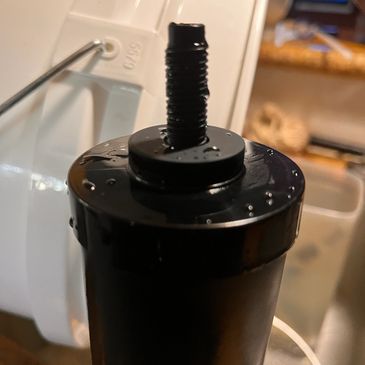

Detach the wing nut from the bottom of one of the black filters and insert it through one of the pre-drilled cover holes. A rubber gasket is provided to ensure a tight fit.
Insert that black filter, with its gasket, through a hole created, attaching the bottom of Chamber 1 with the cover of Chamber 2.
A second rubber gasket is provided to be used with the wingnut on the underside of the cover.
Hand tighten the wing nut on the protruding black filter stem.
Repeat the above to install the other black filter.
ADD THE WHITE FILTERS

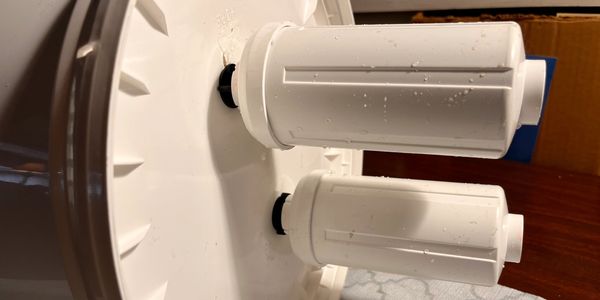

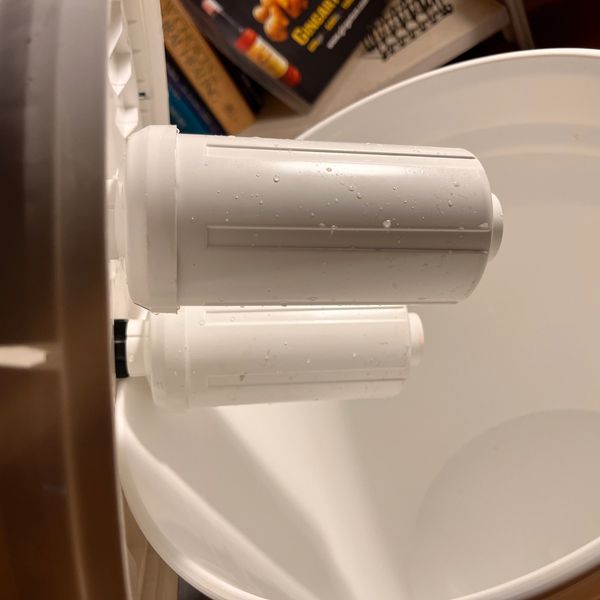

Beneath the cover for the bottom chamber, carefully screw the top of the two primed white filters to the protruding bottom of the black filter stems.
COMBINE THE CHAMBERS
Carefully nestle Chamber 1— with the four filters attached—on top of Chamber two.
...JUST ADD WATER!
Use a bucket, or your container of choice, to add water from your kitchen faucet—or if camping!—from a well, stream, or lake.

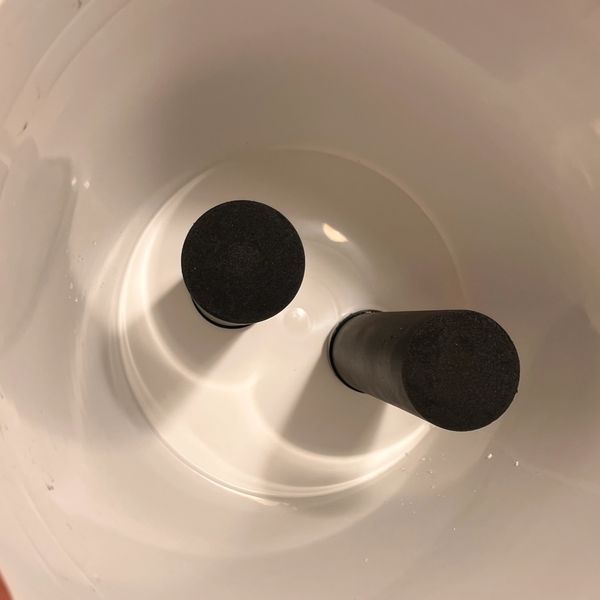

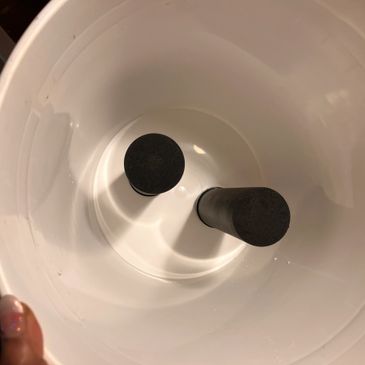

Fill Chamber 1 to just above the tops of the black carbon filters. It will immediately begin to drip and fill Chamber 2.

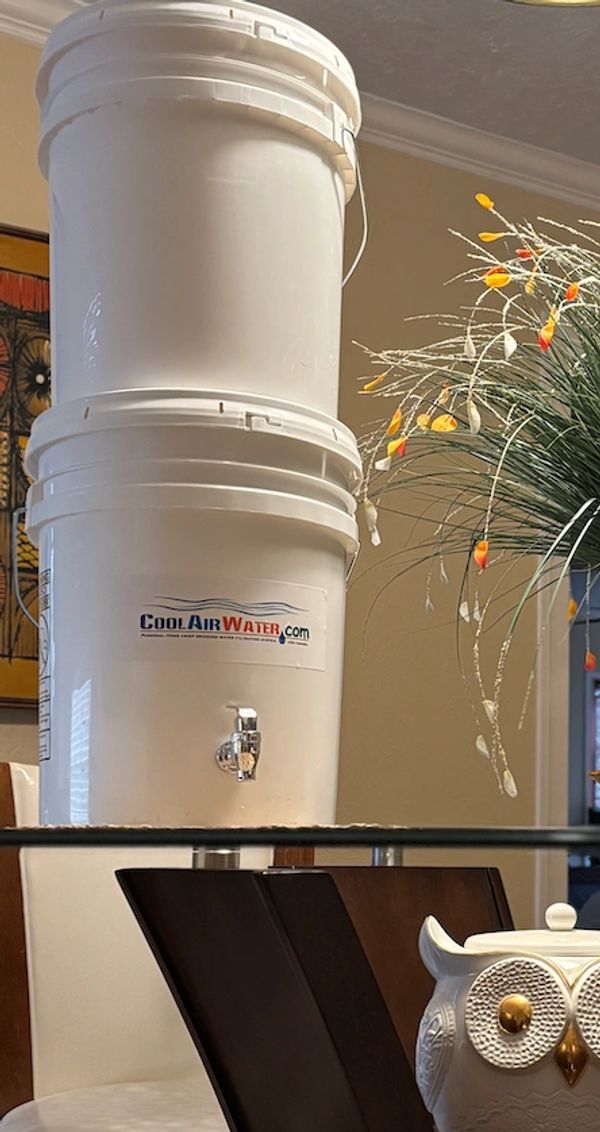

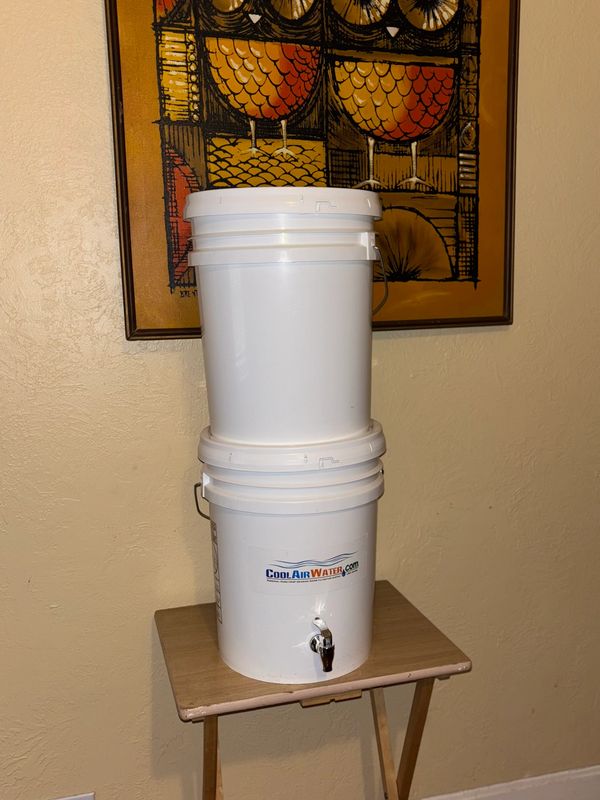

Place your cool air filter on a sturdy surface, edge of a table, counter or rack that will allow your glass, pitcher or jug access to the spigot. The completed kit is 20 inches tall. Ensure that any furniture you choose can hold the weight of up to 5 gallons of water (41 lbs). A funnel will help reduce splash and spillage when filling some jars or containers.
Once your Cool Air Water Filter is operational...
fill a pitcher and put it in your fridge or make and carry your own water bottles.
B.Y.O.W!
Enjoy the cleanest cool “air” water you’ve ever tasted!
CLEANING YOUR COOL AIR WATER KIT...
The BB9-2 Black Carbon Filters are certified to filter up to 6,000 gallons of water.
The PF-2 Fluoride Filters are certified to filter 1000 gallons of water.
However, even these filters will need periodic cleaning.
CLEANING INSTRUCTIONS:
Depending on the level of nastiness in your source water, set your digital calendar to remind you once every 3 or 6 months to give the filters and their Chambers a quick, nontoxic baking soda and water bath: Carefully wipe the inside walls and surface of the black filters with a cloth moisten in a the baking soda/water solution. Rinse well…then fill the top chamber once again and continue use as normal.
